Wire Harnesses in Medical and Industrial Equipment: Design, Standards, and Applications

In the landscape of modern manufacturing, wire harnesses serve as the vital infrastructure for complex machinery，including custom cable assemblies used in industrial automation and medical equipment. Often described as the "nervous system" of a device, these assemblies are responsible for the seamless flow of power and data that keeps critical systems operational. However, when dealing with medical diagnostics or heavy industrial automation, a standard, off-the-shelf cable is rarely sufficient.

At Eweulwire, we have spent over 28 years—since our founding in 1997—refining the engineering logic required for these high-stakes environments. Understanding the nuances of wire harness design is not just a matter of performance; it is a matter of safety, compliance, and long-term reliability.

1. The Role of Wire Harnesses in Medical Equipment

Medical-grade wire harnesses are engineered for environments where signal integrity and patient safety are non-negotiable. These assemblies must comply with strict regulatory standards to ensure they do not interfere with delicate sensors or fail during critical procedures.

Precision in Diagnostic Imaging

High-resolution imaging equipment, such as MRI, CT scanners, and X-ray machines, relies on high-speed data transmission. These systems generate massive amounts of data that must be processed in real-time. Any electromagnetic interference (EMI) can lead to "noise" or artifacts in the imaging, which could result in a dangerous misdiagnosis.

Senior Engineer’s Insight: The "Ghost Signal" Pitfall

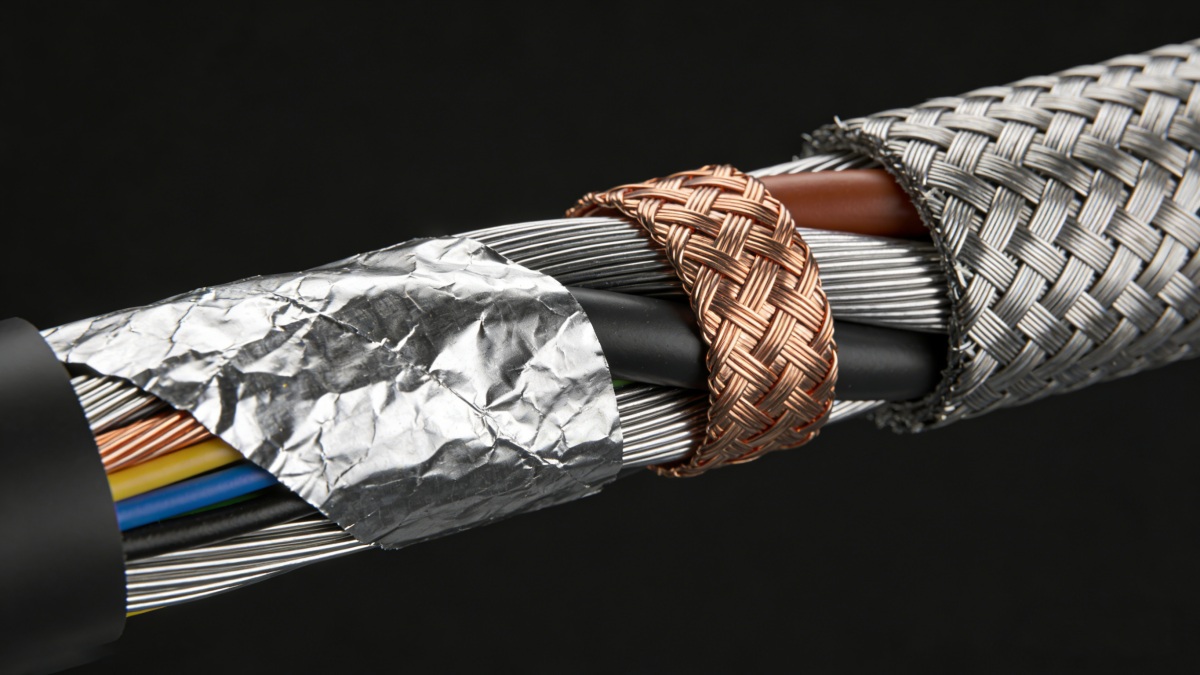

"In my 28 years on the factory floor, I’ve seen many medical projects struggle with 'ghost signals' or blurry imaging. This usually happens when a supplier treats a medical data cable like a standard power line. For imaging suites, we implement Double Shielding—combining Al-Mylar foil for 100% high-frequency coverage with high-density tinned copper braiding for low-frequency noise protection. This ground-up approach ensures the diagnostic signal remains pure."

Sterilization and Biocompatibility

Devices like patient monitors, oxygen-generating equipment, and surgical tools are frequently wiped down with harsh chemical disinfectants. Standard PVC insulation materials can degrade, turn brittle, or crack under these conditions, potentially exposing internal conductors. Eweulwire utilizes specialized medical-grade jackets—such as TPU or Teflon—that are tested to withstand repetitive sterilization cycles without compromising the electrical integrity of the harness.

2. Wire Harnesses in Industrial Automation and Equipment

Industrial environments are notoriously harsh. Wire harnesses in these sectors are the workhorses of the factory floor, subjected to mechanical stress, chemical exposure, and extreme temperature fluctuations 24/7.

High-Flex Applications in Robotics

In the age of Industry 4.0, robotic arms are in constant motion. This creates immense physical stress on the internal wiring. If a cable is not designed for "High-Flex" life, the copper strands inside will eventually undergo metal fatigue and snap, leading to intermittent failures that are notoriously difficult to diagnose.

Senior Engineer’s Insight: Solving Metal Fatigue

"Junior procurement managers often overlook 'Flex-Life' in favor of initial cost. A cable might pass a continuity test perfectly today but fail after 100,000 cycles tomorrow. To prevent this, we use fine-gauge tinned copper stranded conductors. These smaller, more flexible strands redistribute mechanical stress, allowing the harness to survive millions of cycles in robotic applications where standard wire would fail in weeks."

Resistance to Industrial Contaminants

Factory floors are often filled with cutting oils, lubricants, and coolants. These substances can dissolve standard insulation over time. For these applications, we utilize UL 2464 certified materials, which are specifically engineered for superior oil and abrasion resistance. Ensuring your harness is chemically compatible with its environment is a critical step in preventing mid-production line failures.

3. Technical Reference: Medical vs. Industrial Engineering

To help you choose the right specifications for your next project, here is a technical breakdown of how we approach these two distinct sectors at our Shenzhen facility:

4. Establishing Authority through Quality Verification (EEAT)

Authority in the wire harness industry is earned through consistent quality and transparent certification. Since 1997, Eweulwire has evolved into a strategic B2B partner by adhering to the world's most stringent quality management systems.

IATF 16949 and ISO 9001 Compliance

We achieved our IATF 16949 certification in 2021, which represents the gold standard for automotive quality management. We apply these same rigorous protocols—including full material traceability and documented process control—to our medical and industrial production lines. This ensures that every batch meets the exact same high standards for reliability.

The "Double-Lock" Testing Protocol

At Eweulwire, we do not leave quality to chance. Every assembly undergoes a "Double-Lock" verification process:

• IQC (Incoming Quality Control): We verify the purity of tinned copper and the thickness of insulation in our in-house lab before production begins.
• 100% End-of-Line Testing: Using automated equipment, we perform continuity, high-voltage insulation (Hi-Pot), and pull-force tests on every single harness before it is packed for shipment.

Senior Engineer’s Insight: The "Cheap Wire" Illusion

"Some suppliers offer lower prices by skipping Accelerated Aging Tests. At Eweulwire, we've been a UL-certified manufacturer since 2012 (File E350123), and we test for long-term stability. A cheap wire might look fine now, but if the plasticizers are low-quality, it will become brittle like a cracker in 3 to 5 years. We engineer our harnesses for a 15-20 year service life."

When selecting a wire harness manufacturer for medical or industrial equipment, engineers and procurement teams should evaluate several key factors:

• Engineering experience with complex cable assemblies

• Material traceability and certification compliance

• Testing capabilities such as Hi-Pot and pull-force testing

• Customization capability for high-flex or shielded applications

• Long-term reliability validation

A reliable supplier should not only manufacture wire harnesses but also provide engineering support to optimize cable routing, shielding, and durability.

Whether you are designing a high-end diagnostic imaging system or a complex PLC control panel for an automated factory, the wire harness is the foundation of your equipment's reputation. From standard UL 1007 electronic wires to complex shielded multi-core signal assemblies, the engineering details are what protect your brand from recalls and downtime.

With 28 years of experience, a UL-certified facility, and IATF 16949 precision, Eweulwire is ready to help you navigate the complexities of your next project.

Ready to optimize your equipment's connectivity?

Contact Eweulwire Today for a technical consultation with our senior engineering team. Let's build a solution that is safe, compliant, and built to last.
