The Waterproof M8 Female Circular Connector is designed for reliable and durable connections in demanding industrial environments. This connector offers flexible material options, available in both polyvinyl chloride (PVC) and polyurethane (PUR) cable jackets to suit different application needs—whether requiring flexibility, oil resistance, or abrasion protection.

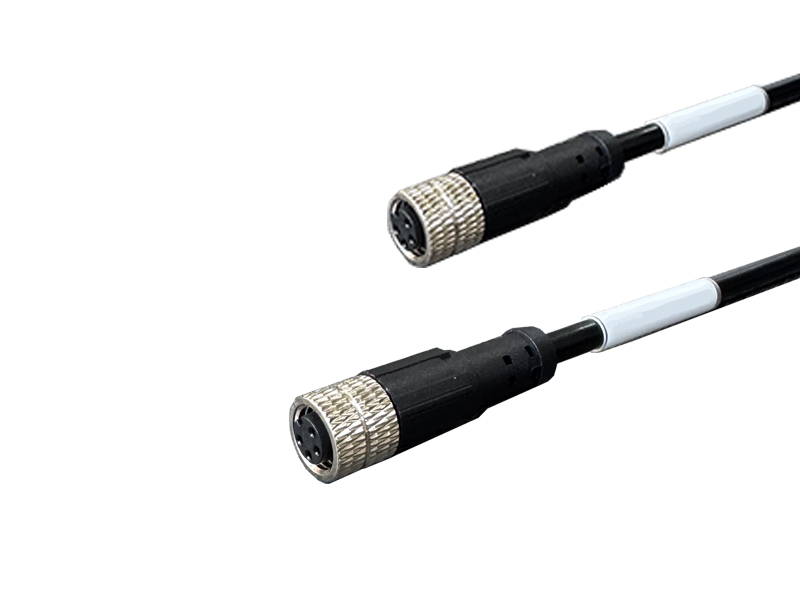

Waterproof M8 Female Circular Connector (PVC/PUR Cable, Customizable)

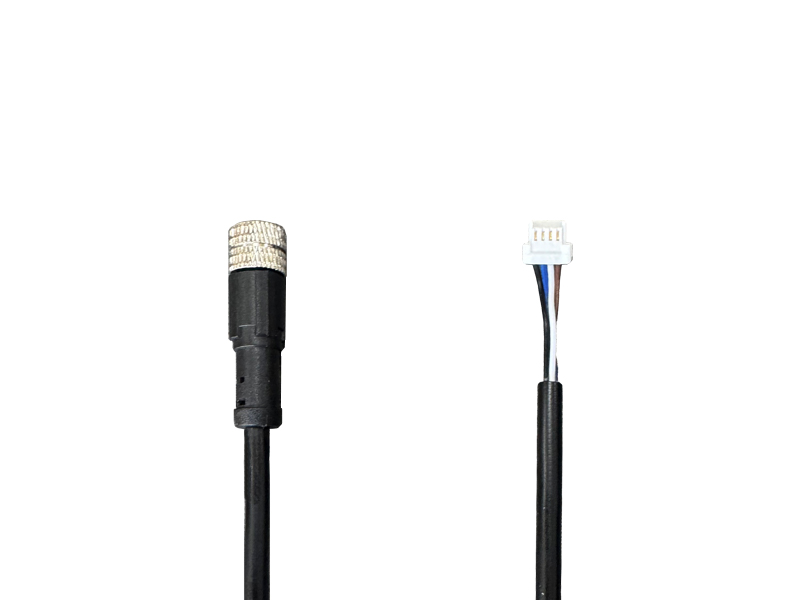

Highlights of M8 Female Aviation Plug Connector:
Robust Construction: Threaded metal housing with vibration-resistant design, ideal for harsh industrial environments requiring frequent plugging and unplugging.
Stable Data Integrity: Gold-plated contacts ensure low resistance and anti-interference for instruments/meters
Material Options: Choose between PVC (flexible/cost-effective) or PUR (oil/abrasion-resistant) cables.
High-Current Support: Supports up to 4A/pin (customizable for higher loads) in robotics joint motors and control units
 |
 |
Basic Specifications
| M8 Female Aviation Plug Head Specifications | |
| Parameter | Specifications |
| Shell Protection Level | IP65/IP67 |
| Outer Diameter of Cable | 3.5 - 5.0mm |
| Mechanical Life | >100 insertion and extraction cycles / 100 mating cycles |
| High Temperature | +85°C |
| Low Temperature | -25°C |
| Operating temperature | -40℃ to +105℃ |
| Rated Voltage | 60V for 3 - contact, 30V for 4 - contact |
| Surge Voltage | 1500V for 3 - contact, 800V for 4 - contact |
| Pollution Degree | 3 |
| Over-voltage Protection Level | III |
| Insulation Group | III |
| Rated Current (at 40°C) | 3A for 0.14mm², 4A for 0.25mm² |
| Transition Resistance | ≤3Ω |
| Contact Pin | Copper-zinc alloy (brass) / brass |
| Contact Surface | Gold (gold-plated) |
| Pin Body | Polybutylene terephthalate (UL94HB flame-retardant grade) |
| Cable Plug Shell | Polyurethane / polyvinyl chloride |
Application:
Industrial Automation: Used for signal transmission and power connection in automated production line equipment, ensuring stable equipment operation and adapting to the frequent plug - and - unplug requirements in industrial environments.
Instruments and Meters: Compatible with various precision instruments and meters, ensuring the accuracy and stability of data transmission and preventing external interference from affecting measurement results.
Robotics: Establishes reliable connections between robot joints, sensors, and control units, meeting the high-reliability requirements of connectors during complex robot movements.
Transportation: Can be applied in automotive electronic systems, rail transit signal systems, etc. It has good vibration - and shock-resistance performance, adapting to the harsh environments in the transportation field.
Aerospace (Auxiliary Equipment): Used in some aerospace ground support equipment or small airborne and on-board equipment with high-reliability requirements, meeting the needs of relevant equipment for lightweight and high-reliability connections.
| Specification | 3 Contacts | 4 Contacts |
| Locking system | screw M8x1 | screw M8x1 |
| Termination | soldermoulded-on cable | soldermoulded-on cable |
| Wire gauge in mm² | 0.14mm² (AWG 26),0.25mm² (AWG 24), 0.34mm² (AWG 22) | |
| Cable outlet (mm) | 3.5-5.0mm | |
| Shell protection | IP65/IP67 | |
| Mechanical operation | >100 mating cycles | |
| Upper temperature | +85°C | |
| Lower temperature | -25°C | |
| Rated voltage | 60V | 30V |
| Rated impulse voltage | 1500V | 800V |
| Pollution degree | 3 | |
| Overvoltage category | II | |
| Material group | III | |
| Rated current (40°C) | 3A (0.14mm²), 4A (0.25mm²) | |
| Contact resistance | ≤3Ω | |
| Pin contact | CuZn (brass) | |
| Contact plating | Au (gold) | Au (gold) |
| Male insert | PBT/PA (UL94HB) | |
| Housing cable connector | PUR/PVC | |
| Contacts | Ordering-No. |
| 3 | YG-08-L-3A-(_M)-PVC |
| 3 | YG-08-L-3A-(_M)-PUR |
| 4 | YG-08-L-4A-(_M)-PVC |
| 4 | YG-08-L-4A-(_M)-PUR |
| Contacts | Ordering-No. |
| 3 | YG-08-L-3B-(_M)-PVC |
| 3 | YG-08-L-3B-(_M)-PUR |
| 4 | YG-08-L-4B-(_M)-PVC |
| 4 | YG-08-L-4B-(_M)-PUR |
